Tool VIP Screws

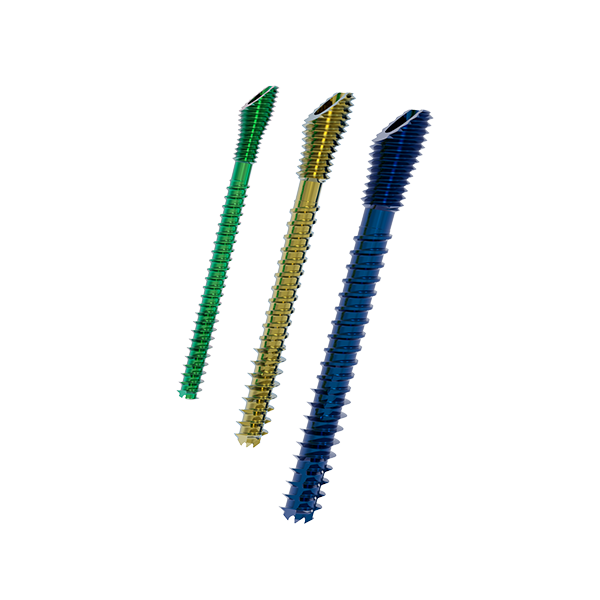

The TOOL VIP Screw System offers three different diameter screws and specialized instrumentation designed for minimally invasive surgery. The neutral pitch allows surgeons to maintain length of the osteotomy site and optimize stability.
- The screws are manufactured from Titanium Alloy and feature a 45 degree beveled head that sits flush with the bone upon insertion.
- The screws are fully threaded with a neutral pitch and feature self-drilling + self-tapping cutting tips.
- The three different screw diameters allow for use in multiple applications. The screws are color coded and sterile packaged for improved traceability.
The Tool VIP Screw is a product manufactured by BRM Extremities. For more information and instructions for use visit www.brm-extremities.com
Screw Options
| 2.0 Diameter | 3.0 Diameter | 4.0 Diameter | |
|---|---|---|---|
| Length | 16mm to 40mm | 16mm to 60mm | 16mm to 60mm |
| K-wire | 1.0mm | 1.0mm | 1.5mm |
| Color Code | Green | Yellow | Blue |
| Hexagonal Driver Size | 1.7 | 2.0 | 2.5 |
Sterile packaged Shannon, Cylindrical and Wedge Burrs are also available for use with or without the Tool VIP Screw System.
